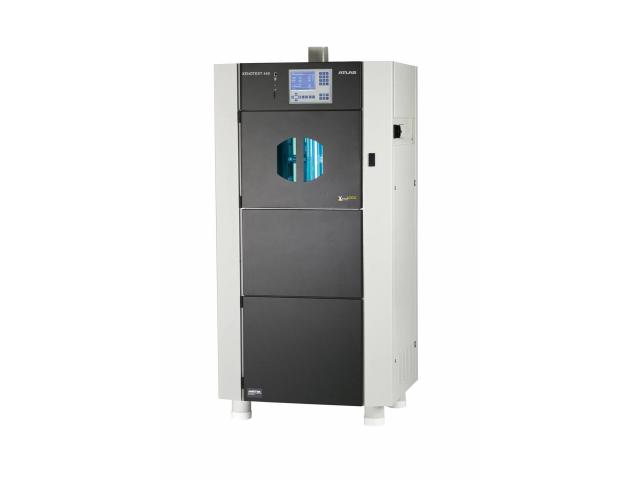

ATLAS Xenotest 440 xenon lamp aging tester

Standards compliant:

　　 ISO 105 B02 B04 B06 B10 4892-2 11341 16474-2; GB/T 8427; AATCC TM 16.1-2012 (option 1.2.3); TM 169 (option 2&3), VDA 75202.


　　Scope of application:

　　This testing machine is designed for economical and quick testing. Xenotest 440 uses the innovative XenoLogic dual lamp operation technology to achieve a high irradiance of 120 watts / square meter of full ultraviolet radiation. In addition, XenoLogic lamps have a longer service life. Through this new technology, the combination of two xenon lamps can work for more than 4000 hours under the test standard of 40-60 watts/m².


product details:

Features:

　　1, two 2200W gas-cooled xenon lamp tubes

　　2. Exposure test area: 2310cm2

　　3, XenoLogicTM operating technology extends the life of the lamp

　　4, color touch screen monitors and displays test parameters

　　5, directly set and control the irradiance (300-400nm)

　　6, directly set and control the black mark temperature (BST)

　　7, directly set and control the box temperature (CHT)

　　 8. Directly set and control relative humidity

　　9, display diagnostic information

　　10, store up to 10 user-defined tests

　　11. Support multi-language operation: English, Chinese, German, Italian, French, Spanish, Japanese, Korean, Turkish, Dutch, Polish, Hungarian and Czech

　　12, XENOSENSIV RC-34 BST is used to measure and control the irradiance (W/m2) in the wavelength range of 300-400nm and the black mark temperature at the sample level

　　13, optional temperature control: cabinet temperature (up to 65 °C) or cabinet temperature black mark temperature dual control (up to 115 °C)

　　14, the difference between the fan control black mark temperature and the box temperature

　　 15. Ultrasonic humidifier controls relative humidity in the range of 10-75% (photoperiod)

　　 16, integrated 60 liters water tank for humidity control and sample spraying (automatically top up)

　　17、Sample spray system

　　18, rotating sample holder with 38 test positions (13.5 cm x 4.5 cm); 33 (10.0 cm x 6.8 cm); 22 (13.5 cm x 5.5 cm); 11 (29.5 cm x 7.0cm)

　　19, pre-programmed light aging and environmental test standards

　　20, filter sleeve made of special UV glass

　　21, UV protection test box window

　　 22, internal memory chip storage device data

　　23, data output through memory card or RS232 interface

　　24. Realize the use of XenoTouch Add-ons (remote control, email service, online monitoring) through the Ethernet interface


technical parameter:

　　1. Air-cooled xenon lamp: 2200W (2 pcs)

　　2. Exposure area: 2310cm2

　　3, test position: 38/33/11

　　4. Sample size: 13.5cm×4.5cm 29.5×7.0cm(1B) 10.0×6.8cm(3B)

　　 5. Tube monitor: XENOSENSIV

　　6. ​​Irradiation intensity range (300-400nm): 30-120W/㎡

　　7, BST range: 40-115℃

　　 8. BPT range: 40-110℃

　　 9. The temperature range of the test chamber: up to 65°C

　　10, humidity range (light cycle): 10-75%

　　11. Water tank capacity: 60L

　　12, water flow (humidifier): about 0.12L/h

　　13. Water flow rate (spray device): about 0.7L/min

　　14, BST+CHT control system: automatic

　　15、Sample spray device

　　 16, with parameter checking and serial port

　　17, touch screen control panel

　　18, memory card interface

　　19, Ethernet interface + additional components

　　20, proprietary xenon lamp technology

　　20, size (length×width×height): 90×78×180cm

　　21, weight: 290kg

　　22. Power supply: 400V±10%, 50/60HZ 32A


Standard configuration:

　　1, 1 host

　　2, 1 set of spare parts package for textile testing

　　3, 1 set of spray device


　　Optional accessories:

　　 XENOSENSIV RC-420 BPT is used to measure and control the irradiance (W/m2) at the wavelength of 420nm and the temperature of the blackboard of the sample
